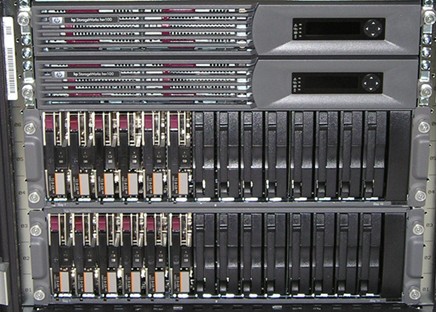

The HP StorageWorks Enterprise Virtual Array 3000 (EVA3000) is the mid-range member of the HP StorageWorks Enterprise Virtual Array. The EVA3000 is a high performance, high availability "virtual" RAID storage solution serving the middle tier of the enterprise class marketplace that removes the time, space and cost boundaries of traditionally architected storage. The EVA3000 is designed for the data center where there is a critical need for improved storage utilization and scalability while meeting application specific demands for consistently high transaction I/O and MB data rate performance, seamless capacity expansion, instantaneous replication, and simplified storage administration. The EVA3000 provides a service portfolio combining hardware and service into a single part number to rapidly deploy the EVA and maintain a solid storage platform. HP offers a full spectrum of complimentary EVA hardware and software product service solutions ranging from the three year Foundation Service Solution, the base level of service included in most EVA offerings, to Critical Service, HP''s support for mission critical environments.（具体可配置情况
一、主机配置
Ø EVA3000/5000 Series v4.0 Controller Media (VCS v4.0) provides support for:
Ø Industry popular multipathing
Ø Business Copy enhancements - 3-phase snapclone, instant restore and RSM Topology Manager
Ø Availability enhancements
Ø Up to 14 devices per disk enclosure
Ø Support for dual-ported 2 Gb FC disk drives and dual-ported Fibre Attached Technology Adapted (FATA) drives
Ø 2 Gb host support
Ø Management of up to 512 virtual disks (256 per HBA) ranging in size from 1 GB to 2 TB per virtual disk
Ø Dynamic capacity expansion (allocate capacity in 1 GB increments)
Ø Virtual disk data load leveling (non-disruptive background activity)
Ø Distributed sparing of disk capacity
Ø Support for Continuous Access EVA remote replication (synchronous and asynchronous)
Ø Support for Business Copy EVA Snapshot (Vsnap) and Snapclone
Ø Dual redundant controller operation for increased fault tolerance
Ø Multiple Bus Failover Support using industry popular multiple path software
Ø Battery Back-up
Ø Asynchronous Disk Swap (hot swap)
Ø Clustered Server Support
Ø Mirrored Write-Back Cache Support
Ø Read-Ahead and Adaptive Read Caching Support
Ø Virtual RAID Arrays (Vraid0, Vraid1, Vraid5)
Ø Non-disruptive VCS software upgrade capability (online upgrade)
Ø Supports connection of up to 256 hosts
Ø Multi-Vendor Platform Support
Ø Controller Password Protection for Configuration Control
Ø Selective Storage Presentation and SAN-based Data Zoning (through switches)
Ø Command View EVA GUI Interface for management and monitoring (manages up to 16 EVAs)
二、主机一般技术要求
Ø Operating Temperature 50° to 95° F (10° to 35° C) - Reduce rating by 1° F for each 1000 ft altitude (1.8° C/1,000 m)
Ø Shipping Temperature -40° to 150° F (-40° to 66° C)
Ø Humidity 10% to 90% non-condensing
Ø Shipping Humidity 5% to 90% non-condensing
Ø Altitude Up to 8,000 ft (2,400 m)
Ø Air Quality Not to exceed 500,000 particles per cubic foot of air at a size of 0.5 micron or larger
Ø AC plug type(quantity 2) 3 wire NEMA No. L6-30R, 30 amp (208 to 240V 60Hz 30A)
Ø Number of phases Single
Ø Rated current 17A @ 200V-240V AC, 60Hz total, 4.25 A per power cord
Ø Nominal Line Voltage 208 or 230V
Ø Range Line Voltage 187 to 256V
Ø Line Frequency 60Hz
Ø Maximum Input Current 20.0 amps on 2 power cords (AC failover condition)
三、详细配件型号及描述
|
种类（Category） |
型号（Part Number） |
描述（Desoription） |
|
Processors |
|
|
|
Memory |
|
|
|
Backplane |
|
|
|
Drivers |
364622-B23 |
300 GB 10K rpm dual-port 2 Gb FC-AL 1-inch (2.54 cm) drive |
|
|
293556-B23 |
146 GB 10K rpm dual-port 2 Gb FC-AL 1-inch (2.54 cm) drive |
|
|
238921-B23 |
72 GB 10K rpm dual-port 2 Gb FC-AL 1-inch (2.54 cm) drive |
|
|
364621-B23 |
146 GB 15K rpm dual-port 2 Gb FC-AL 1-inch (2.54 cm) drive |
|
|
293568-B23 |
72 GB 15K rpm dual-port 2 Gb FC-AL 1-inch (2.54 cm) drive |
|
|
364437-B23 |
250 GB FATA disk dual-port 2GB FC Hybrid disk drive factory integrated |
|
Covers |
|
|
|
Cable |
|
|
|
Interfaces |
|
|
|
Fans |
|
|
|
Monitors |
|
|
|
Parts |
|
|
|
Power Supplies |
|
|
|
Other |
338042-B21 |
42U EVA cab 60 Hz (based on Series 10,000 rack system) |
|
|
338044-B21 |
36U EVA cab 60 Hz (based on Series 10,000 rack system) |
|
|
338046-B21 |
22U EVA cab 60 Hz (based on Series 10,000 rack system) |
|
|
AD572A |
HP StorageWorks 42U 100V EVA cabinet |
|
|
AD573A |
HP StorageWorks 36U 100V EVA cabinet |
|
|
358254-B21 |
5642 (42U) Rack Cabinet System |
|
|
A4902A |
HP Rack System/E41 (41U, quartz) |
|
|
A4902D |
HP Rack System/E41 (41U, graphite) |
|
|
A4901A |
HP Rack System/E33 (33U, quartz) |
|
|
A4901D |
HP Rack System/E33 (33U, graphite) |
|
|
A4900A |
HP Rack System/E25 (25U, quartz) |
|
|
AD543A |
EVA3000 2C1D-C with Foundation Service Solution |
|
|
AF919A |
EVA3000-D Starter Kit with 3 year 9x5 next day business day warranty |
|
|
221691-B21 |
FC Short Wave 2-Meter Cable, LC/SC (1 Gb to 2 Gb) |
|
|
221691-B22 |
FC Short Wave 5-Meter Cable, LC/SC (1 Gb to 2 Gb) |
|
|
221691-B23 |
FC Short Wave 15-Meter Cable, LC/SC (1 Gb to 2 Gb) |
|
|
221691-B26 |
FC Short Wave 30-Meter Cable, LC/SC (1 Gb to 2 Gb) |
|
|
221691-B27 |
FC Short Wave 50-Meter Cable, LC/SC (1 Gb to 2 Gb) |
|
|
221692-B21 |
2-meter LC-LC Multi-Mode Fibre Cable |
|
|
221692-B22 |
5-meter LC-LC Multi-Mode Fibre Cable |
|
|
221692-B23 |
15-meter LC-LC Multi-Mode Fibre Cable |
|
|
221692-B26 |
30-meter LC-LC Multi-Mode Fibre Cable |
|
|
221692-B27 |
50-meter LC-LC Multi-Mode Fibre Cable |
|
|
T3588D |
EVA3000/5000 Series v4.0 Controller Media Kit (VCS media kit is required) |
|
|
344818-B21 |
EVA3000 Controller pair assembly with Foundation Service Solution: |
|
|
345438-B21 |
EVA3000 Controller Accessory Kit |
|
|
AD542A |
M5314A FC Drive Enclosure |
|
|
345439-B21 |
Universal Rail Kit for M5x14 drive enclosure |
|
|
321624-B21 |
Cable FC Copper SFP .6m |
|
|
324394-B21 |
Cable FC Copper SFP 2m |
|
|
293357-B21 |
12 cable routing spools are included in the kit. |
|
|
293358-B21 |
Two rail-to-rail routing brackets and 12 Velcro ties are include in the kit. |
|
|
293359-B21 |
Six side rail routing brackets with eight Velcro ties are included in the kit. |
|
