HP Integrity BL870c Server
HP Integrity BL870c Server刀片服务器采用最新一代的HP Integrity服务器技术，使刀片服务器c-Class客户也能充分利用新技术的优势。 刀片服务器c-Class不仅可以支持Integrity Linux和Integrity Windows，还能支持HP-UX和OpenVMS操作环境。 HP Integrity BL870c刀片服务器是一款四插槽全高刀片服务器，采用最新的英特尔®安腾®9100双核处理器，最高支持96GB的内存（24个DIMM插槽），目前有三种型号可供选择。 BL870c标配4个千兆以太网端口，支持3个标准的c-Class I/O mezzanine卡，以及最多4个内置SFF SAS热插拔硬盘。 您可以在一个c-Class机箱内同时安装HP Integrity BL870c刀片服务器、ProLiant刀片服务器以及StorageWorks刀片存储。（产品简单介绍，请使用中文，如原文是英文请附加。）。
具体可配置情况
例如：
一、主机配置
Ø Up to four Intel® Itanium® 9100 Series processors
Ø Up to 96 GB of memory. Supporting (24) DDR2-533 ECC memory DIMMS
Ø Embedded LSI 1068 SAS RAID Controller integrated on system board
Ø Standard SAS controller (RAID 1 only)
Ø Supports up to (4) four small form factor (SFF) SAS hot plug hard drives
Ø Four (4) Embedded Standard Gigabit NICs
Ø Plus one (1) additional 10/100 NIC dedicated to Integrity iLO 2 Management
Ø Three (3) additional I/O expansion slots via mezzanine cards.
Ø Supports up to (3) mezzanine cards
² Dual-Port Fibre Channel Mezzanine (4-Gb) options for SAN connectivity (QLogic).
² 4X DDR InfiniBand (IB) Mezzanine (20 Gb/s) options for low latency server interconnectivity
² Four-Port GbE adapter expansion via HP NC364m PCI-Express Quad-Port Adapter
Ø Internal USB port on the BL870c
Ø HP Integrity Server Blades Management Software
² Integrity Integrated Lights Out 2 (iLO 2) management processor
² HP Integrity Integrated Light Out 2 (iLO 2) with Advanced Pack, (factory integrated)
² HP Integrity Essentials
² HP System Insight Manager
² HP System Management Homepage
² HP-UX 11i Management Software for Integrity Blades
l HP Ignite-UX
l HP-UX Software Assistant (SWA)
Ø HP BladeSystem Infrastructure Management Software:
² HP BladeSystem Integrated Manager in HP SIM
² HP Insight Control Environment for BladeSystem
² HP BladeSystem c-Class Onboard Administrator
² HP BladeSystem c-Class Virtual Connect
Ø Enterprise Management Software
² Data Protector Software
² GlancePlus Pak
² Performance Manager and Agent
Ø Intelligent Control
² HP Integrity Essentials Capacity Advisor
² HP Integrity Essentials Virtualization Manager
² HP-UX Workload Manager
² HP Systems Insight Manager
Ø Partitioning Continuum
² HP Integrity Virtual Machines (with HP-UX guest OS''s and Windows Guest OS''s)
² HP Process Resource Manager/pSets
² Secure Resource Partitions
Ø Continuous availability
² HP Serviceguard for HP-UX 11i
² HP Serviceguard Extensions for SAP
² HP Serviceguard Extensions for Faster Failover
Ø VSE Reference Architectures
² VSE Suites including HP Integrity Essentials Capacity Advisor, HP Integrity Essentials Virtualization Manager, HP-UX Workload Manager, HP Integrity Virtual Machines, and VSE Reference Architectures
Ø The BL870c server blade plugs vertically into the BladeSystem c7000 and c3000 enclosures
Ø HP Integrity BL870c server blade is a full-height, BladeSystem c-Class form factor occupying two (2) full height slots.
Ø BL870c server blades can be configured in a fully populated rack.
Ø HP offers three different c-Class server blade enclosures to meet your individual needs:

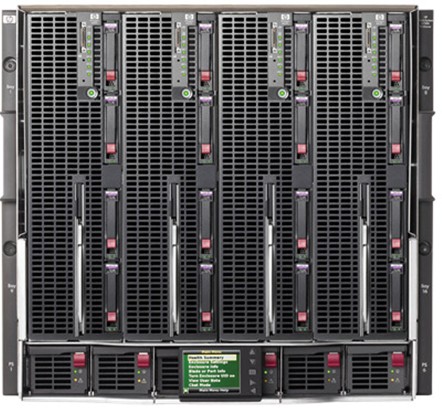

² The HP BladeSystem c7000 rack enclosure is 10U high and holds up to 4 HP ProLiant BL870c servers plugged vertically. Four (4) enclosures can be configured to a standard 42U rack
² The HP BladeSystem c3000 rack enclosure is 6U high and holds up to 2 HP ProLiant BL870c servers plugged horizontally. Up to 7 enclosures can be configured to a standard 42U rack
² The HP BladeSystem c3000 tower enclosure is designed with casters for sites without racks and holds up to 2 HP ProLiant BL870c servers plugged vertically.
² The HP BladeSystem c3000 Enclosure targets three separate market segments:
l Remote sites needing between 2 and 8 server blades
l Mid-sized companies with between 3 and 100 servers in their company
l Enterprise accounts with special datacenter requirement, such as DC power, or very limited rack power and cooling capacity.
Ø Server blades, storage blades, and interconnect modules are all designed to fit into the c7000 and c3000 enclosures.
Ø Protected by HP Services and a worldwide network of HP Authorized Channel Partners. Three-year parts, 3 Year Labor and 3 Year on-site limited global warranty. Certain restrictions and exclusions apply
二、主机一般技术要求
例：
Ø Dimensions Height 14.42 in (36.63 cm)
Depth 20.05 in (50.93 cm)
Width 4.10 in (10.41 cm)
Ø Shipping Dimensions Height 21.50 in (54.61 cm)
Depth 23.13 in (58.75 cm)
Width 9.94 in (25.25 cm)
Ø Weight Maximum 38 (17 kg)
Ø Temperature Range Range Operating 10° to 35° C (50° to 95° F)
Non-Operating -40° to 60° C (-40° to 140° F)
Storage -20° to 60° C (-4° to 140° F)
Ø Maximum Wet Bulb Temperature 30° C (86° F)
Ø Relative Humidity Humidity Operating 10% to 90%
Shipping 10% to 90%
Storage 10% to 95%
Ø Disk Drive and Enclosure Interface 3G SAS (Serial Attached SCSI)
Ø SAS Connectors 1 internal mini-SAS x4 wide port connector
Ø Server Interface PCI-X 66MHz 64-bit provides 0.5GB/s maximum bandwidth
Ø SAS Speed x4 3G SAS provides 1.2GB/s maximum bandwidth.
Ø Cache Memory No cache memory supported
Ø Logical Drives Supported Up to 32 logical volumes
Ø Maximum Logical Drive Capacity 584GB (4 x 146GB)
Ø Host Memory Addressing 64-bit, supporting greater than 4GB server memory space
Ø RAID Support RAID 1 (Mirroring)
Ø Upgradeable Firmware Upgradeable Firmware
三、详细配件型号及描述
|
种类（Category） |
型号（Part Number） |
描述（Desoription） |
|
Processors |
AH320A
|
Intel® Itanium® Dual-Core Processors Model 9150N (1.6 GHz, 24MB, 533FSB, L3
cache) |
|
|
AH255A
|
Intel® Itanium® Dual-Core Processors Model 9140N (1.6 GHz, 18MB, 533FSB, L3
cache) |
|
|
AH256A
|
Intel® Itanium ® Dual-Core Processors Model 9120N (1.42 GHz, 12MB. 533FSB,
L3 cache) |
|
Memory |
AH252A |
4GB PC2-4200 DDR2-5300 Quad Memory |
|
|
AH253A |
8GB PC2-4200 DDR2-5300 Quad Memory |
|
|
AH254A |
16GB PC2-4200 DDR2-5300 Quad Memory |
|
Backplane |
|
|
|
Drivers |
431935-B21 |
HP 72GB 3G SAS 15K SFF SP HDD |
|
|
431933-B21 |
HP 36GB 3G SAS 15K SFF SP HDD |
|
|
431958-B21 |
HP 146GB 3G SAS 10K SFF HDD |
|
|
375861-B21 |
HP 72GB 3G SAS 10K SFF SP HDD |
|
Covers |
|
|
|
Cable |
|
|
|
Interfaces |
403619-B21 |
HP Dual Port 4Gbps QLogic FC HBA (Type I Mezz) |
|
|
447883-B21 |
HP NC364m Quad Port 1GbE BL-c Adapter |
|
Fans |
|
|
|
Monitors |
|
|
|
Parts |
|
|
|
Power Supplies |
|
|
|
Other |
AD361B |
c7000 BCS c-Class Enclosure, FIO |
|
|
AH257A |
c3000 BCS c-Class Enclosure, FIO |
|
|
410533-B21 |
HP 4X DDR IB Mezzanine HCA (no Software) |
|
|
AD248A #106 |
Factory configured hardware RAID 1 |
注：描述使用英文
|
