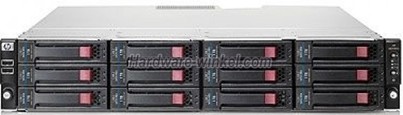

About the AiO1200r AiO1200r: This high storage density, performance-optimized, and easily expandable solution built on the HP ProLiant DL185 G5 Storage Server provides shared storage expansion for application servers (iSCSI SAN), enhanced file serving for end-user clients (NAS), and comprehensive data protection features all in 12-drive/2U rack-mount package. The AiO1200r is an excellent solution if you''re looking for increased performance and storage capacity from up to 12 internal drives and a high performance RAID controller that''s also ready for external expansion. The AiO1200r is available in both SATA and Serial Attached SCSI (SAS) configurations.（产品简单介绍，请使用中文，如原文是英文请附加。）。
具体可配置情况
例如：
一、主机配置
Ø AMD Opteron™ processor Quad-Core Model 2354 2.2GHz Cache:4 x 512KB Level 2 and 2MB shared Level 3
Ø One processor standard; up to 2 supported
Ø 2GB (2 x 1GB) standard (all SATA models)
Ø 4GB (2 x 2GB) standard (all SAS models)
Ø 8 DIMM sockets available; 4GB maximum memory (by O/S license)
Ø Windows Storage Server 2003, Release 2 Standard Edition
Ø Embedded NC7782 Dual Port PCI-X 10/100/1000T Gigabit network adapter
Ø Smart Array P800/512MB Controller (RAID 0/1/5/6) with BBWC and external expansion ports
Ø 3TB SATA model: 12 x 250GB hot-plug SATA 7.2K MDL HDDs
Ø 6TB SATA model: 8 x 750GB hot-plug SATA 7.2K MDL HDDs
Ø 9TB SATA model: 12 x 750GB hot-plug SATA 7.2K MDL HDDs
Ø 12TB SATA model: 12 x 1TB hot-plug 7.2K MDL HDDs
Ø 2.4TB SAS model: 8 x 300GB hot plug SAS 15K ENT HDDs
Ø 3.6TB SAS model: 12 x 300GB hot plug SAS 15K ENT HDDs.
Ø 5.4TB SAS model: 12 x 450GB hot plug SAS 15K ENT HDDs
Ø Rear DVD-ROM drive
Ø (2) Full-length, full-height PCIe x8 slots (one slot occupied by Smart Array P800/512MB controller)
Ø Redundant non-hot plug power supplies
Ø Non-redundant fans
Ø Remote system management User Interface (UI), Remote Desktop or Telnet
Ø HP ProLiant Lights Out 100i remote management - Advanced Pack included
Ø Rack (2U), (3.5-inch)
二、主机一般技术要求
Ø Dimensions(H x W x D)(with bezel)
n 3.44x 17.64 x 27.50 in (8.75 x 44.80 x 69.88cm)
Ø Weight(approximate)
Ø Maximum(all hard drives, power supplies, and processors installed) 51.5 lb (19.22 kg)
Ø Input Requirements(per power supply)
n Rated Line Voltage 100 -- 240 VAC
n Rated Input Current 9.10 A (at 100 VAC),4.5 A (at 200 VAC)
n Rated Input Frequency 50 to 60 Hz
n Rated Input Power 910 W (at 100 VAC),900 W (at 200 VAC)
n BTU Rating Maximum 3107.82 BTU/hr (at 100 VAC),3073.67 BTU/hr (at 200 VAC)
Ø Power Supply Output(per power supply)
n Rated Steady-State Power 750 W (at 100 VAC),750 W (at 200 VAC)
n Maximum Peak Power 750 W (at 100 VAC),750W (at 200 VAC)
Ø System Inlet Temperature
n Operating 10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed. System performance may be reduced if operating with a fan fault or above 30°C (86°F).
n Non-operating -30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).
Ø Relative Humidity(non-condensing)
n Operating 10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, noncondensing.
n Non-operating 5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, noncondensing.
Ø Altitude
n Operating 3050 m (10,000 ft). This value may be limited by the type and number of options installed.Maximum allowable altitude change rate is 457m/min (1500 ft/min).
n Non-operating 9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
三、详细配件型号及描述
|
种类（Category） |
型号（Part Number） |
描述（Desoription） |
|
Processors |
468547-B21 |
AMD Opteron. processor 2354 (2.2GHz, 75W ACP) |
|
Memory |
408850-B21 |
1 GB REG PC2-5300 2 x 512 MB Single Rank Kit |
|
|
483399-B21 |
2 GB REG PC2-5300 2 x 1 GB Low Power Single Rank Kit |
|
|
497763-B21 |
2 GB REG PC2-6400 2 x 1 GB Kit |
|
|
408851-B21 |
2 GB REG PC2-5300 2 x 1 GB Single Rank Kit |
|
Backplane |
|
|
|
Drivers |
454232-B21 |
HP 450GB 3G 15K 3.5-inch DP SAS ENT HDD |
|
|
459508-B21 |
HP 400GB 3G SAS 10K 3.5-inch DP ENT HDD |
|
|
416127-B21 |
HP 300GB 3G SAS 15K 3.5-inch DP HDD |
|
|
384854-B21 |
HP 146GB 3G SAS 15K 3.5-inch DP HDD |
|
|
384852-B21 |
HP 72GB 3G SAS 15K 3.5-inch DP HDD |
|
|
461137-B21 |
HP 1TB 3G SAS 7.2K 3.5-inch DP MDL HDD |
|
|
461135-B21 |
HP 750GB 3G SAS 7.2K 3.5-inch DP MDL HDD |
|
|
454146-B21 |
HP 1TB 3G SATA 7.2K 3.5-inch MDL HDD |
|
|
458930-B21 |
HP 750GB 3G SATA 7.2K 3.5-inch MDL HDD |
|
|
458928-B21 |
HP 500GB 3G SATA 7.2K 3.5-inch MDL HDD |
|
|
458926-B21 |
HP 250GB 3G SATA 7.2K 3.5-inch MDL HDD |
|
|
458945-B21 |
HP 160GB 3G SATA 7.2K 3.5-inch ETY HDD |
|
|
454232-B21 |
HP 450GB 3G 15K 3.5-inch DP SAS ENT HDD |
|
|
459508-B21 |
HP 400GB 3G SAS 10K 3.5-inch DP ENT HDD |
|
|
431944-B21 |
HP 300GB 3G SAS 15K 3.5-inch SP HDD |
|
|
416127-B21 |
HP 300GB 3G SAS 15K 3.5-inch DP HDD |
|
|
375872-B21 |
HP 146GB 3G SAS 15K 3.5-inch SP HDD |
|
|
384854-B21 |
HP 146GB 3G SAS 15K 3.5-inch DP HDD |
|
|
375870-B21 |
HP 72GB 3G SAS 15K 3.5-inch SP HDD |
|
|
384852-B21 |
HP 72GB 3G SAS 15K 3.5-inch DP HDD |
|
|
461137-B21 |
HP 1TB 7.2K 3.5-inch DP SAS MDL HDD |
|
|
461135-B21 |
HP 750GB 7.2K 3.5-inch DP SAS MDL HDD |
|
|
492620-B21 |
HP 300GB 3G 10K 2.5-inch SAS DP HDD |
|
|
431958-B21 |
HP 146GB 3G SAS 10K SFF SP HDD |
|
|
418367-B21 |
HP 146GB 3G SAS 10K SFF DP HDD |
|
|
375861-B21 |
HP 72GB 3G SAS 10K SFF SP HDD |
|
|
384842-B21 |
HP 72GB 3G SAS 10K SFF DP HDD |
|
|
431935-B21 |
HP 72GB 3G SAS 15K SFF SP HDD |
|
|
418371-B21 |
HP 72GB 3G SAS 15K SFF DP HDD |
|
|
431933-B21 |
HP 36GB 3G SAS 15K SFF SP HDD |
|
|
418369-B21 |
HP 36GB 3G SAS 15K SFF DP HDD |
|
|
454146-B21 |
HP 1TB 3G SATA 7.2K 3.5-inch MDL HDD |
|
|
458930-B21 |
HP 750GB 3G SATA 7.2K 3.5-inch MDL HDD |
|
|
458928-B21 |
HP 500GB 3G SATA 7.2K 3.5-inch MDL HDD |
|
|
458926-B21 |
HP 250GB 3G SATA 7.2K 3.5-inch MDL HDD |
|
|
460355-B21 |
HP 250 GB 3G 5.4K 2.5-inch SFF SATA ETY HDD |
|
|
458924-B21 |
HP 120 GB 1.5G 5.4K 2.5inch SFF SATA ETY HDD |
|
|
379306-B21 |
HP 60 GB 1.5 G 5.4K 2.5-inch SFF SATA HDD |
|
Covers |
|
|
|
Cable |
|
|
|
Interfaces |
503746-B21 |
HP NC112T PCIe Gigabit Server Adapter |
|
|
412648-B21 |
HP NC360T PCI Express Dual Port Gigabit Server Adapter |
|
|
435508-B21 |
HP NC364T PCI Express Quad Port Gigabit Server Adapter |
|
|
394793-B21 |
HP NC373F PCI Express Multifunction Gigabit Server Adapter |
|
|
394791-B21 |
HP NC373T PCI Express Multifunction Gigabit Server Adapter |
|
|
458492-B21 |
HP NC382T PCI Express Dual Port Multifunction Gigabit Server Adapter |
|
|
435129-B21 |
HP Smart Array E500/256MB Controller |
|
|
457692-B21 |
HP Internal SAS/SATA 4-Port Cable |
|
|
381513-B21 |
HP Smart Array P800/512MB BBWC Controller |
|
|
416096-B21 |
HP SC44Ge Host Bus Adapter |
|
|
412911-B21 |
HP SC11Xe Host Bus Adapter (PCI-e) |
|
|
AH627A |
HP U320e SCSI Host Bus Adapter |
|
Fans |
|
|
|
Monitors |
|
|
|
Parts |
|
|
|
Power Supplies |
|
|
|
Other |
|
| |
