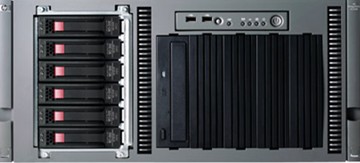

HP StorageWorks 600 All-in-One Storage System
About the AiO600: This tower/rack solution provides shared storage expansion for application servers (iSCSI SAN), enhanced file serving for end-user clients (NAS), and comprehensive data protection features. The AiO600 is an excellent solution for customers looking for increased capacity, scalability, and hardware redundancy. The AiO600 is available in both SATA and Serial Attached SCSI (SAS) configurations.（产品简单介绍，请使用中文，如原文是英文请附加。）。
具体可配置情况
例如：
一、主机配置
Ø Dual Core Intel Xeon 2.67 GHz/1333 MHz FSB with 4MB (1 x4MB) L2 Cache;
Ø 1 GB of PC2-5300 Fully Buffered DIMMs; 2 x 512MB (AiO600 has Eight PC2-5300 FB-DIMM (DDR2 667) sockets)
Ø Up to 4GB supported
Ø Windows Storage Server 2003, Release 2 Standard Edition
Ø Embedded NC373i Multifunction Gigabit Network Adapter with TCP/IP Offload Engine
Ø Additional Dual port 10/100/1000T Adapter (NC360T)
Ø Smart Array E200i Controller with 128MB BBWC included (RAID0,1,10,5)
Ø 1.5TB SATA Model: 6 x 250GB front load, hot plug, 7200 RPM SATA HDDs
Ø 3.0TB SATA Model: 6 x 500GB front load, hot plug, 7200 RPM SATA HDDs
Ø 876GB SAS Model: 6 x 146GB front load, hot plug, 15,000 RPM Serial Attached SCSI (SAS) HDDs
Ø 1.8TB SAS Model: 6 x 300GB front load, hot plug, 15,000 RPM Serial Attached SCSI (SAS) HDDs
Ø HP DVD+R/RW 16X Half Height
Ø (3) x4 PCI-Express (x8 connectors)
Ø (1) 64 bit, 133MHz 3.3V PCI-X
Ø (2) 64 bit, 100MHz 3.3V PCI-X
Ø Dual Hot-Plug redundant power supplies
Ø Two system fans plus two redundant system fans
Ø Remote system management User Interface (UI), Remote Desktop or Telnet
Ø Integrated Lights Out 2 (iLO2) with Advanced License Pack
Ø 5 U Tower or Rack with optional rack conversion
Ø The AiO600 has a standard 3-3-3 warranty (3 years parts exchange, three years labor, and three years on-site, next business day response) which can be upgraded to same day support through HP Care Packs.
Ø The AiO600 supports Insight Manager through SNMP. For more information on HP Insight Manager please visit:
二、主机一般技术要求
Ø Dimensions (HxWxD) 18.43 x 8.66 x 25.2 in (46.8 x 22 x 64 cm)
Ø Weight (approximate) 60 lb (27.24 kg) (without hard drives)
Ø Shipping Size 35.13 x 23.63 x 15.75 in (89.23 x 60.02 x 40.01cm)
Ø Input Requirements(per power supply)
Ø Rated Input Voltage 100-120 VAC / 200-240VAC
Ø Rated Input Frequency 50 Hz to 60 Hz
Ø Input Power <1000W @ 90VAC
u <1050W @ 115VAC
u <1205W @ 180VAC
Ø Rated Input Current 10A(100VAC),6.7A(200VAC)
Ø Rated Line Frequency 50 to 60 Hz
Ø BTU Rating 4112BTU/hr 180VAC
Ø Power Supply OutputPower
Ø Rated Steady-State Power 800W at 120V or 1000W at 220V
Ø Temperature Range Operating 50° to 95° F (10° to 35° C)
u Storage (up to one year) 40° to 158° F (-40° to 70° C)
Ø Maximum Wet BulbTemperature 82.4° F (28° C)
Ø Relative Humidity Operating 10% to 90%
u Non-operating 5% to 90%
Ø Acoustic Noise Idle L WAd (BELS) 6.0
u L pAm (dBA) 43
u Operating L WAd (BELS) 6.0
u L pAm (dBA) 43
三、详细配件型号及描述
|
种类（Category） |
型号（Part Number） |
描述（Desoription） |
|
Processors |
416890-B21 |
Dual-Core Intel Xeon Processor 5150 (2.67 GHz, 1333 FSB) |
|
Memory |
413507-B21 |
512 MB FBD PC2-5300 1 x 512 MB Kit |
|
|
397409-B21 |
1 GB FBD PC2-5300 2 x 512 MB Kit |
|
|
397411-B21 |
2 GB FBD PC2-5300 2 x 1 GB Kit |
|
Backplane |
397413-B21 |
4 GB FBD PC2-5300 2 x 2 GB Kit |
|
Drivers |
AG536A (Americas) |
6 x 250GB front loading, hot plug, 7200 RPM SATA HDDs |
|
|
AG537A (AP) |
6 x 250GB front loading, hot plug, 7200 RPM SATA HDDs |
|
|
AG538A (EMEA) |
6 x 250GB front loading, hot plug, 7200 RPM SATA HDDs |
|
|
AG539A (Aust) |
6 x 250GB front loading, hot plug, 7200 RPM SATA HDDs |
|
|
AG541A (Americas) |
6 x 500GB front loading, hot plug, 7200 RPM SATA HDDs |
|
|
AG542A (AP) |
6 x 500GB front loading, hot plug, 7200 RPM SATA HDDs |
|
|
AG543A (EMEA) |
6 x 500GB front loading, hot plug, 7200 RPM SATA HDDs |
|
|
AG544A (Aust) |
6 x 500GB front loading, hot plug, 7200 RPM SATA HDDs |
|
|
AG547A (Americas) |
6 x 146GB front loading, hot plug, 15,000 RPM Serial Attached SCSI (SAS) HDDs |
|
|
AG548A (AP) |
6 x 146GB front loading, hot plug, 15,000 RPM Serial Attached SCSI (SAS) HDDs |
|
|
AG549A (EMEA) |
6 x 146GB front loading, hot plug, 15,000 RPM Serial Attached SCSI (SAS) HDDs |
|
|
AG550A (Aust) |
6 x 146GB front loading, hot plug, 15,000 RPM Serial Attached SCSI (SAS) HDDs |
|
|
AG725A (Americas) |
6 x 300GB front loading, hot plug, 15,000 RPM Serial Attached SCSI (SAS) HDDs |
|
|
AG726A (AP) |
6 x 300GB front loading, hot plug, 15,000 RPM Serial Attached SCSI (SAS) HDDs |
|
|
AG727A (EMEA) |
6 x 300GB front loading, hot plug, 15,000 RPM Serial Attached SCSI (SAS) HDDs |
|
|
AG728A (Aust) |
6 x 300GB front loading, hot plug, 15,000 RPM Serial Attached SCSI (SAS) HDDs |
|
Covers |
|
|
|
Cable |
|
|
|
Interfaces |
374654-B21 |
HP 64-bit/133-MHz single channel Ultra320 SCSI host bus adapter G2 |
|
|
412911-B21 |
HP SC11Xe Host Bus Adapter |
|
|
416096-B21 |
HP SC44Ge Host Bus Adapter |
|
|
273915-B21 |
Smart Array 6402/128 |
|
|
273914-B21 |
Smart Array 6404/256 |
|
|
291967-B21 |
Smart Array 642 |
|
|
337972-B21 |
HP Smart Array P600 Controller |
|
|
372538-B21 |
512 MB Battery-Backed Cache Upgrade |
|
|
381513-B21 |
HP Smart Array P800/512 BBWC Controller |
|
|
434905-B21 |
HP NC110T PCI Express Gigabit Server Adapter |
|
|
367132-B21 |
HP NC150T PCI 4-port Gigabit 1000T Combo Switch Adapter |
|
|
368169-B21 |
HP NC310F PCI-X 1000SX Gigabit Server Adapter |
|
|
391661-B21 |
HP NC340T PCI-X 4-port 1000T Gigabit Server Adapter |
|
|
412648-B21 |
HP NC360T PCI Express Dual Port Gigabit Server Adapter |
|
|
394791-B21 |
HP NC373T PCI Express Multifunction Gigabit Server Adapter |
|
|
394793-B21 |
HP NC373F PCI Express Multifunction Gigabit Server Adapter |
|
|
394795-B21 |
HP NC380T PCI Express Dual Port Multifunction Gigabit Server Adapter |
|
|
414126-B21 |
HP NC510F PCIe 10 Gigabit Server Adapter |
|
|
414129-B21 |
HP NC510C PCIe 10 Gigabit Server Adapter |
|
|
AG546A |
AiO600 Tower to Rack Conversion Kit |
|
|
371482-B21 |
Shipping Bracket for Round Hole Racks |
|
|
BB130AA |
HP StorageWorks Data Protector Express D2D2Any LTU |
|
|
BB133AA |
HP StorageWorks Data Protector Express Drive Expansion (1incremental drive) LTU |
|
Fans |
|
|
|
Monitors |
|
|
|
Parts |
|
|
|
Power Supplies |
|
|
|
Other |
|
|
